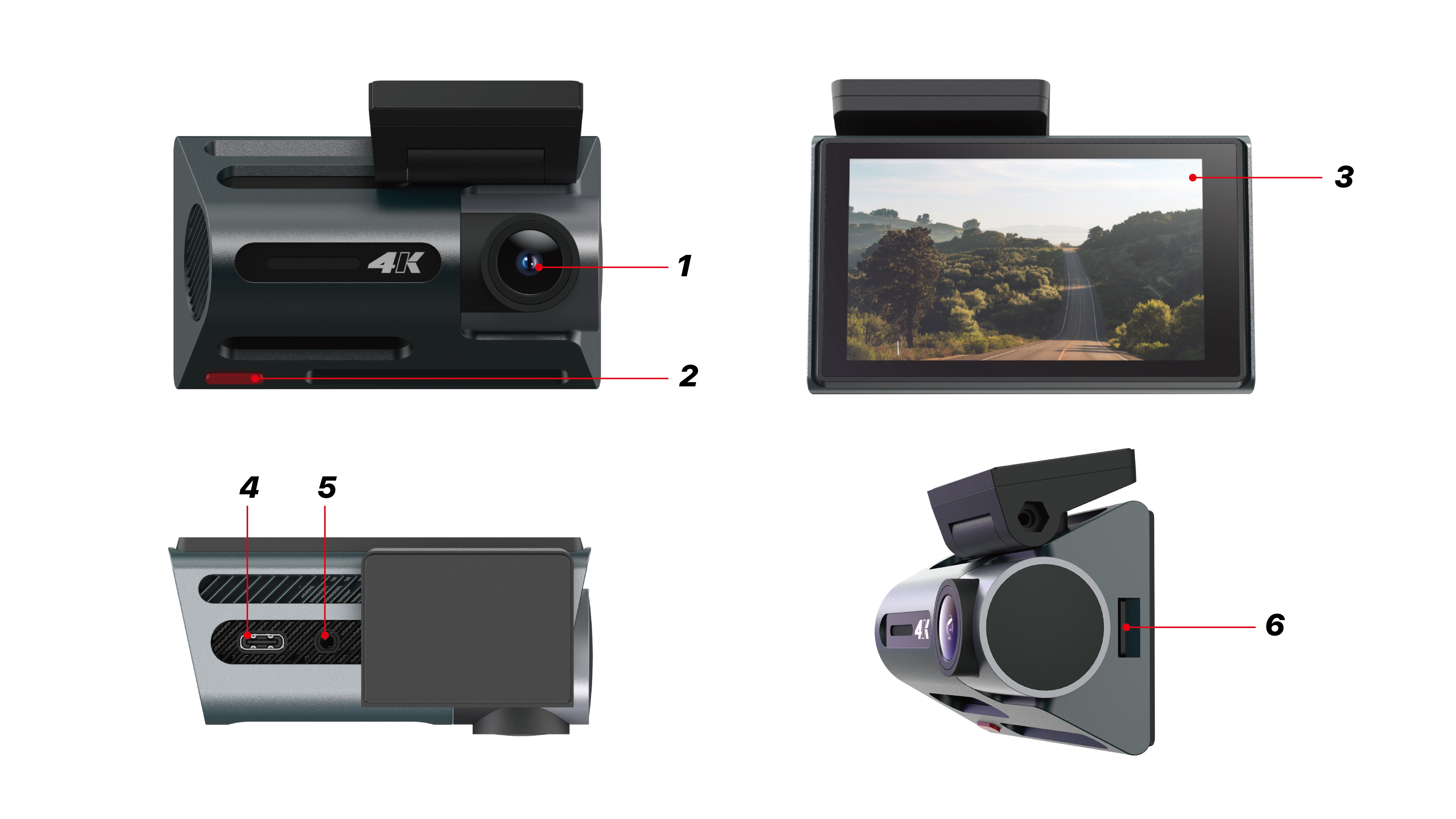

01. Product Appearance

1. 4K Camera

2. Power Button

3. IPS Screen

4. Type-C Interface

5. Rear Pull Interface

6. TF Storage Card (Class 10 or above, 512MB~256GB, cannot exceed 256GB)

02. Product Specifications

This product uses a high-performance chip to provide high-definition video and seamless dynamic imaging. Please read this manual carefully before use and keep it properly, as we hope this product can meet your needs and serve you for a long time!

03. Function Introduction

Power Button Function

Function One: Power On/Off Function

In the off state, long press the 【Power Button】 for 3 seconds to turn on the device; it will automatically start working. In the on state, long press the 【Power Button】 for 3 seconds to automatically save the video files and user settings before turning off.

Function Two: Turn Off Display Function

In the on state, press the 【Power Button】 to activate the screen saver. Press the Power Button again to turn off the display, and press it once more to turn on the display.

Functional Interface Operation Introduction

Recording Interface

1. Recording status, recording duration countdown, and recording resolution display

2. Date and time display

3. Status bar, corresponding icons displayed when the respective functions are turned on, similar to the mobile phone status bar

4. One-key return to the main interface operation icon

5. Recording on/off operation icon

6. Photo/capture operation icon

7. One-key recording on/off sound operation icon

8. One-key recording lock operation icon

9. Front/rear screen operation icon

ADAS Intelligent Driving Mode

1. One-key return to the main interface operation icon

2. Automatic calibration switch operation icon

3. Manual calibration interface operation icon

4. Advanced driver assistance system warning on/off operation icon

5. Assistance warning setting interface operation icon

Note: If the recording resolution is set to 4K+2.5K, when ADAS is turned on, the resolution will automatically switch to 2.5K+2.5K; if ADAS is turned on and then the resolution is set to 4K+2.5K, ADAS will automatically turn off.

04. Installation Guide

1. Turn off the car engine.

2. Insert the TF card into the recorder's card slot. 【Note】 Please use a high-speed TF card (Class 10 or above), with a capacity of no less than 512MB, maximum support for 256GB.

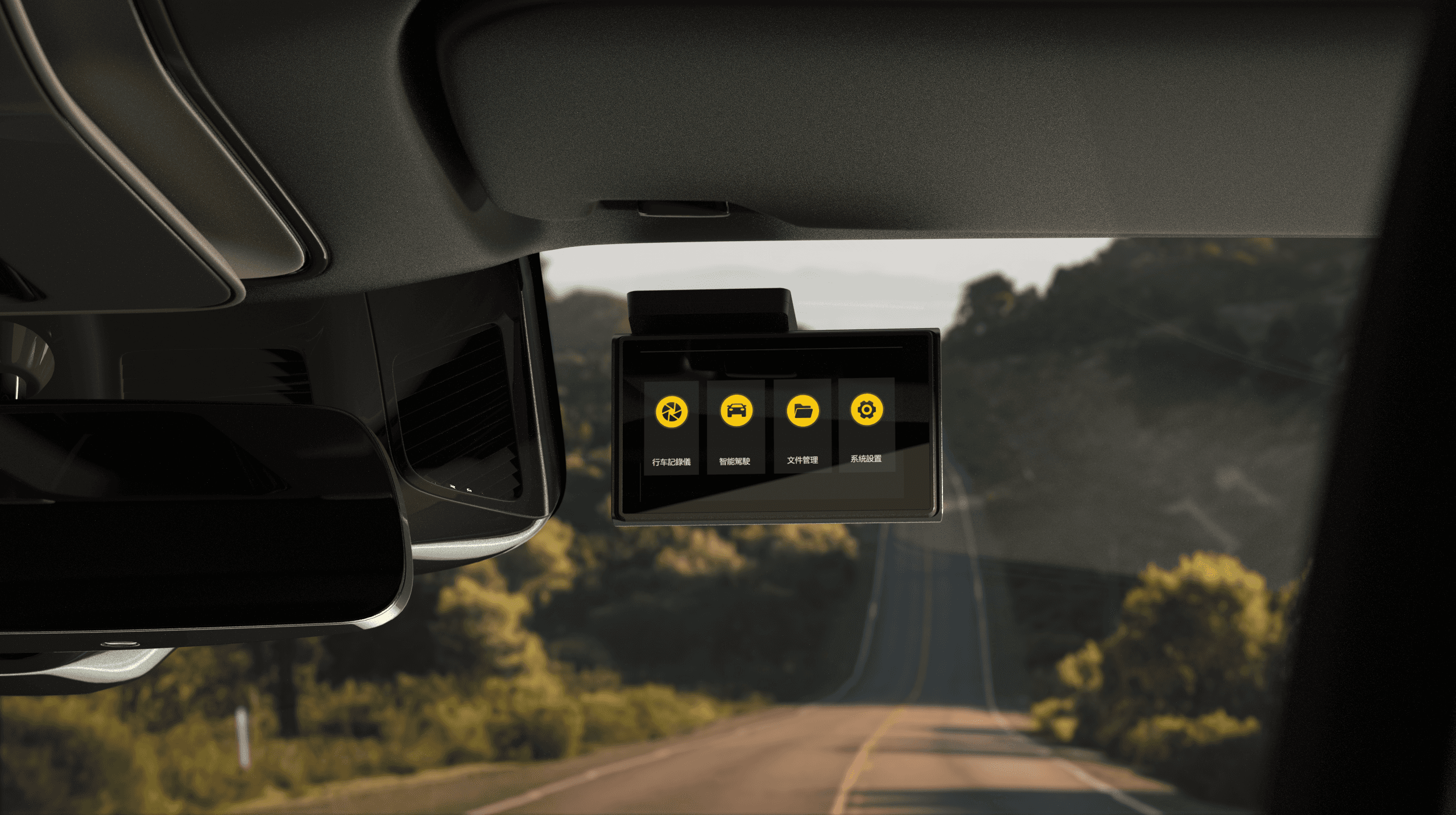

3. Secure the recorder to the original rearview mirror of the car.

4. Plug the car charger into the vehicle's cigarette lighter.

5. Use an extension cord to connect the USB interface of the recorder to the car charger. 【Note】 When laying wires, you can run the extension cord along the edge of the car windshield.

6. Install the rear camera at the back of the vehicle, paying attention to the direction during installation. Wiring can be laid along the vehicle's roof. After installation, connect the rear plug to the recorder's rear camera interface.

7. Adjust the lens position to ensure it remains level with the ground.

8. Start the engine, and check whether the device is installed correctly. 【Note】 When the device is installed correctly, the system working indicator light will turn on; the device will start and enter recording mode, and the recording indicator light will blink. Please check if the display on the screen is normal. If the display shows an inverted image, please contact us promptly.

05. APP Connection User Guide

Connection Steps

Step 1

Scan the QR code to download the Honnmono App. After downloading, open the app and register an account.

Step 2

After registration is complete, enter the “Personal Homepage”, click “Add Device”, and jump to the add device interface. Click the “Dashcam” module to add your dashcam.

Step 3

Connect the mobile phone to WIFI, WIFI name: DriveEZ_D09_XXXXXX; starting password: 12345678; or check the WIFI name and password in the device settings. After connecting to WIFI, return to the Honnmono APP to add the device. Click “Join Recorder”, the device will start to connect automatically, and it will redirect to the recorder page upon successful connection.

Recorder Preview Description

Click “Enter Recorder Screen” to proceed to the following interface.

1. Device online display

2. Full screen button

3. Pause/start recording button

4. Snapshot button

5. Video playback button

6. Settings button
