01. Product Introduction
Aimed at providing a seamless and efficient charging solution for CCS2 electric vehicles at GB/T charging stations. Ensure compatibility Before using the GBT to CCS2 adapter, please refer to the product specifications and your vehicle's requirements to ensure compatibility.
CCS2 Port
Type-C interface (firmware update)
GB/T Port
Status indicator & button
DC Plug Product Specifications | |
|---|---|
Current | 200A DC |
Voltage | 100V DC |
Operating Temperature (Celsius) | -30°C ~85°C |
Storage Temperature (Celsius) | -40°C~85°C |
Weight (kg/lb) | 1.8kg/3.97lb |
Certification | CE |
Protection Level | IP65 |
02. Usage Process & Binding Device

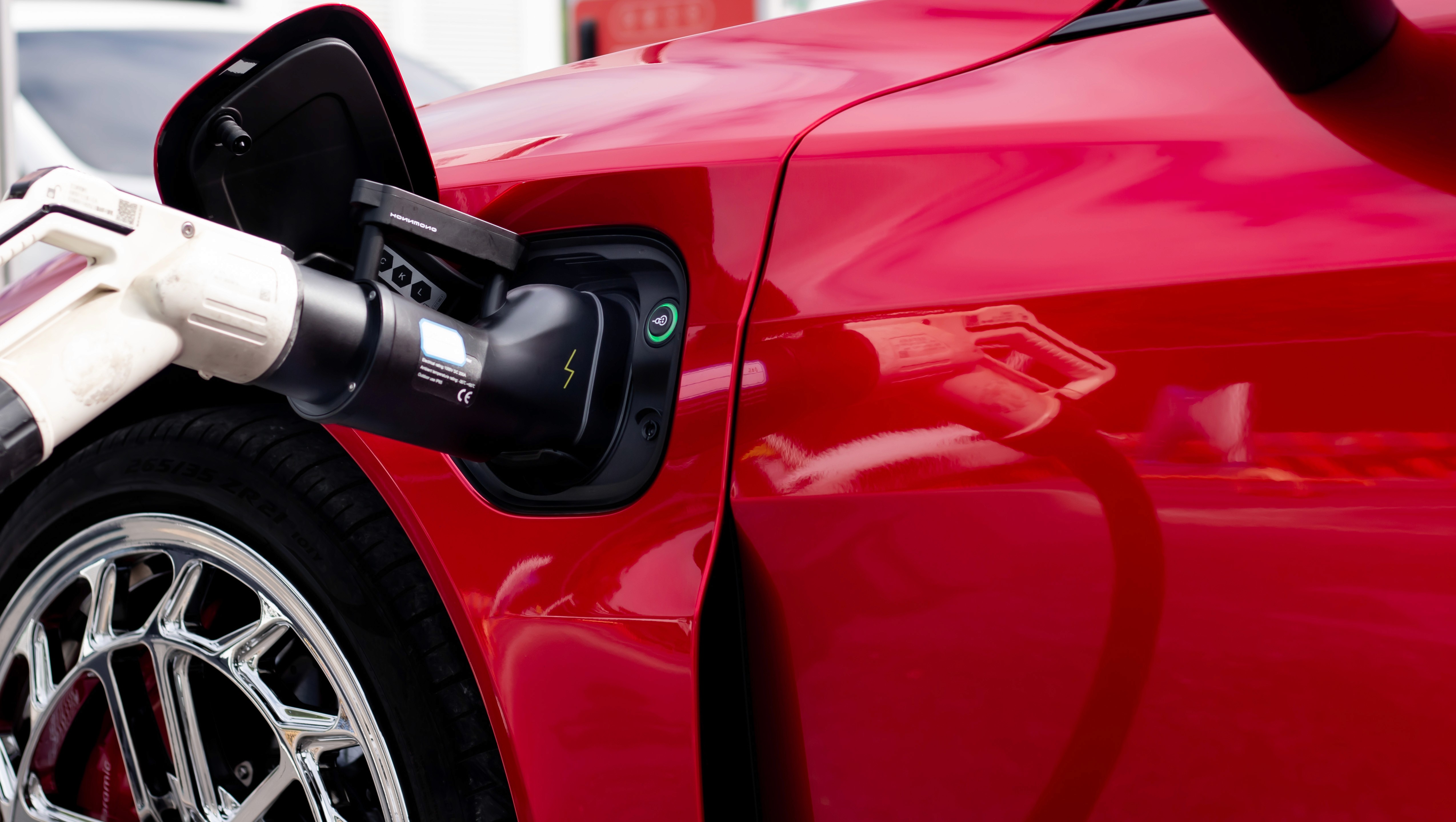

Completely insert the CCS2-GB/T into the electric vehicle charging interface.
Connect the charging gun, making sure the latch on the charging gun clicks into the standard plug port's position.
Please wait for 10-30 seconds for the plug and charging pile to complete communication, and a switch to start charging will appear on the charging pile/App mini program. Press the switch to start charging.
03. Firmware Update Procedure
Prepare a USB device for firmware update:
The USB device needs to be formatted to FAT32 file system, with a capacity not exceeding 16GB.
Clear all files from the USB device.
Only copy the file 'MAIN_GBT2CCS_2.UPG' to the root directory of the USB device.
Update firmware:
Insert the USB device into the USB port of the DC plug (located directly beneath the handle).
Power on:
Press the power button to turn on the device.
The indicator light will start blinking quickly.
After about 10 seconds, the indicator light will remain on, and then the device will turn off.
Complete firmware update:
Remove the USB device from the DC plug.
Press the power button again to start the device.
The indicator light will blink quickly, indicating that the firmware update is in progress.
04.Note
Only clean with a dry cloth
Avoid disassembly, dropping, or heavy impact
It is recommended that users initially choose brands from large charging stations, such as: Xiaoju Charging, Fast Charging, Kamaisi, Lechong, Yishite, Teld, etc.
If charging is unsuccessful, you may try other charging piles in the station, as many users have reported that some charging piles may be faulty.
05. Warranty
This product has a 2-year warranty. Our plug warranty will void if it is found to have been cracked, or if there is misuse, operating errors, negligence, vehicle accidents, or modifications. Our warranty only covers natural wear and tear.
