01. Product Introduction
This product is an AC charging pile, suitable for residential and commercial scenarios, equipped with complete electrical protection functions and human-machine operation interface, supporting safe and efficient electric vehicle charging, in compliance with international standards.

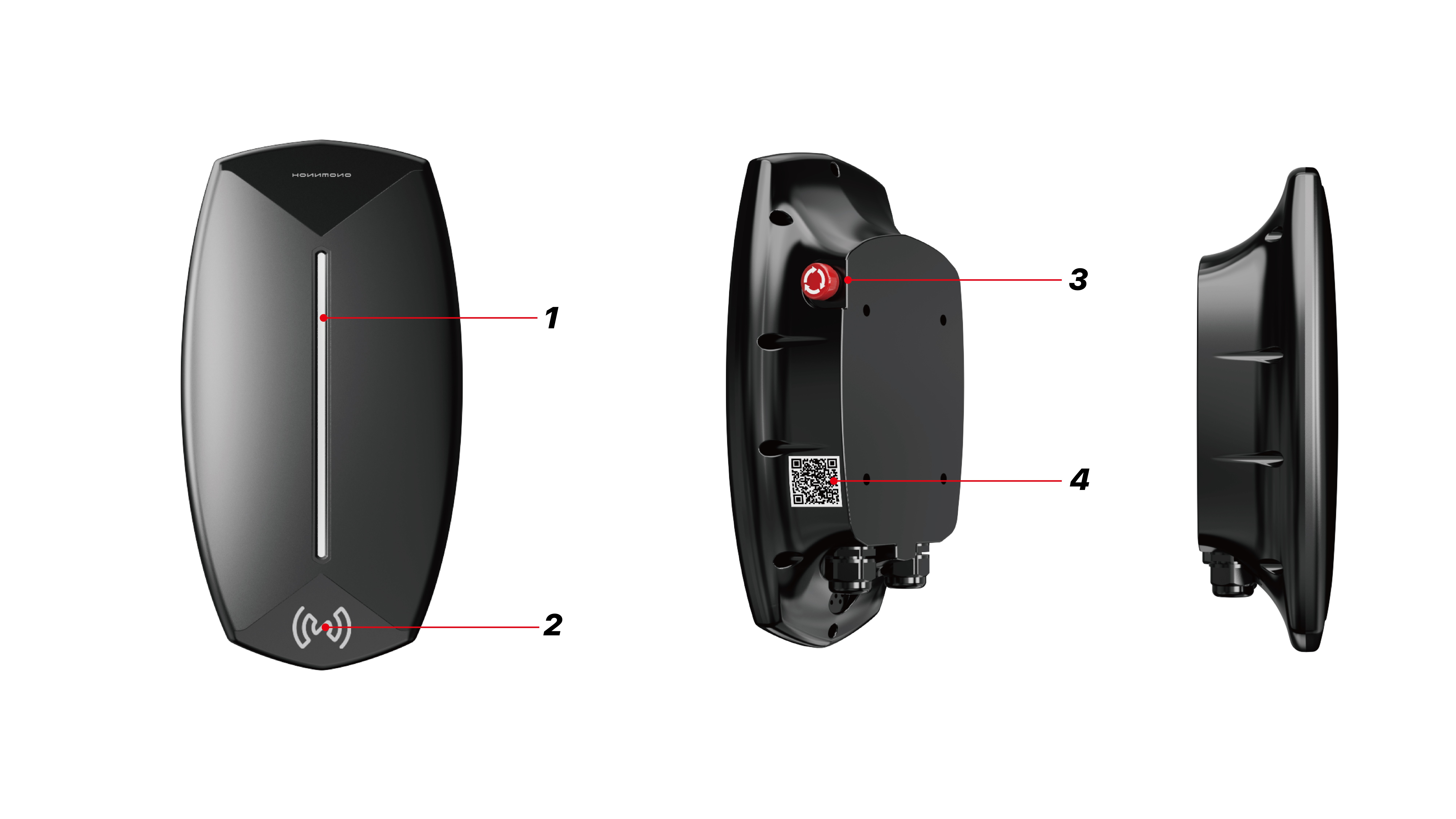

Indicator Light Strip
Card Reading Area
Emergency Stop Button
Product QR Code
Product Specifications | |
|---|---|
Input Voltage | 230V AC ±10% |
Operating Temperature (Celsius) | -25°C ～55°C |
Protection Level | IP54 (suitable for indoor/outdoor) |
Protection Type | Type I |
Communication Protocol (optional) | OCPP 1.6J |
Installation Method | Wall-mounted / Column selection |
Ground Protection | Triggers alarm protection when the ground line is not connected or poorly grounded |
Overcurrent Protection | Triggers alarm protection when the load exceeds 110% of the rated current |
Relay Sticking Protection | Triggers alarm protection when the relay sticks during standby |
Overtemperature Protection | Triggers alarm protection when the temperature >100℃ |
Overvoltage Protection | Triggers alarm protection when >275V |
Undervoltage Protection | Triggers alarm protection when <100V |
B-type Leakage Protection | Triggers alarm protection for leakage DC >6mA, AC >30mA, Trigger time <100ms |
Emergency Stop | Opens emergency stop triggering alarm protection, trigger time <100mS |
02. Installation Instructions

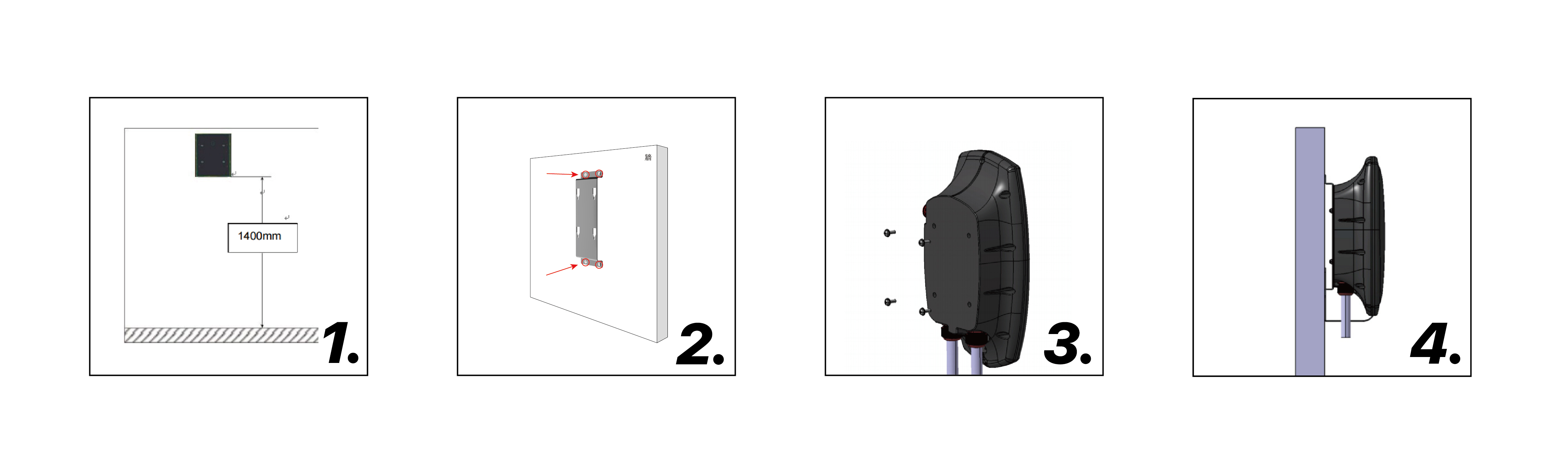

Before installation, prepare the corresponding fixing bolts. It is recommended to use 4 Ø6*80 expansion bolts.
Remove the metal mounting plate from the packaging and determine the installation position (recommended height: 1400mm).
After determining the installation position, use an impact drill to drill holes, and then install the wall bracket on the wall with Ø6 expansion screws according to the directional indication.
Pre-install the four M6*15 hex screws included with the product into the corresponding positions of the charging wall box. Note that the screws should not be tightened, leaving a gap of 2-3mm.
Hang the charging wall box on the wall bracket and tighten the four M6*15 hex screws from the side with a hex wrench.
After installation, turn on the power, wait for the indicator light on the charging wall box to light up, and then follow the user manual to execute the charging procedure to ensure the normal use of the charging wall box.
Status of the Indicator Light Strip under Different Conditions | |
|---|---|
Standby Status | Blue Light Always On |
Ready to Charge Status | Green Light Always On |
Charging Status | Green Light Flashing |
Charging Complete Status | Green Light Always On |
Emergency Stop Fault | Red Light Always On |
Ungrounded Fault | Red Light Flashes 2 times every 5s |
CP Error Fault | Red Light Flashes 3 times every 5s |
Overcurrent Fault | Red Light Flashes 4 times every 5s |
Overvoltage Fault | Red Light Flashes 5 times every 5s |
Undervoltage Fault | Red Light Flashes 6 times every 5s |
Relay Sticking Fault | Red Light Flashes 7 times every 5s |
Leakage Fault | Red Light Flashes 8 times every 5s |
Overtemperature Fault | Red Light Flashes 9 times every 5s |
03. APP Binding Process

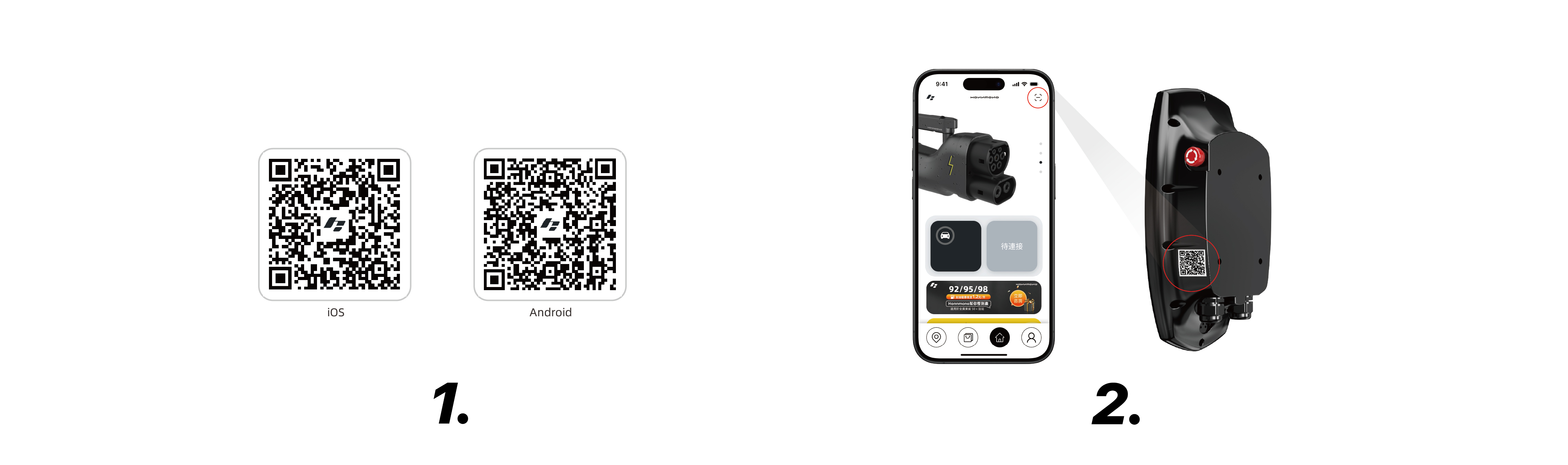

Scan the QR code to download the Honnmono App. After the download is complete, open the App and register an account.
After registration, return to the homepage, tap the scanning icon at the top right of the homepage, and scan the QR code on the right side of the product to link to the product.
04.Charging Usage Tutorial
Using RFID Card
To start the charging process, connect the charger to the vehicle and place the key card on the charging pile's RFID sensor for 0.5 seconds.
To stop the charging process, place the key card on the charging pile's RFID for 0.5 seconds.
Using APP
After binding is complete, open the HONNMONO APP, go to the homepage, scroll down to find the "Home Charging Pile" section to access the device, and start charging.
Click the on icon to start charging.
Click the off icon to stop charging.

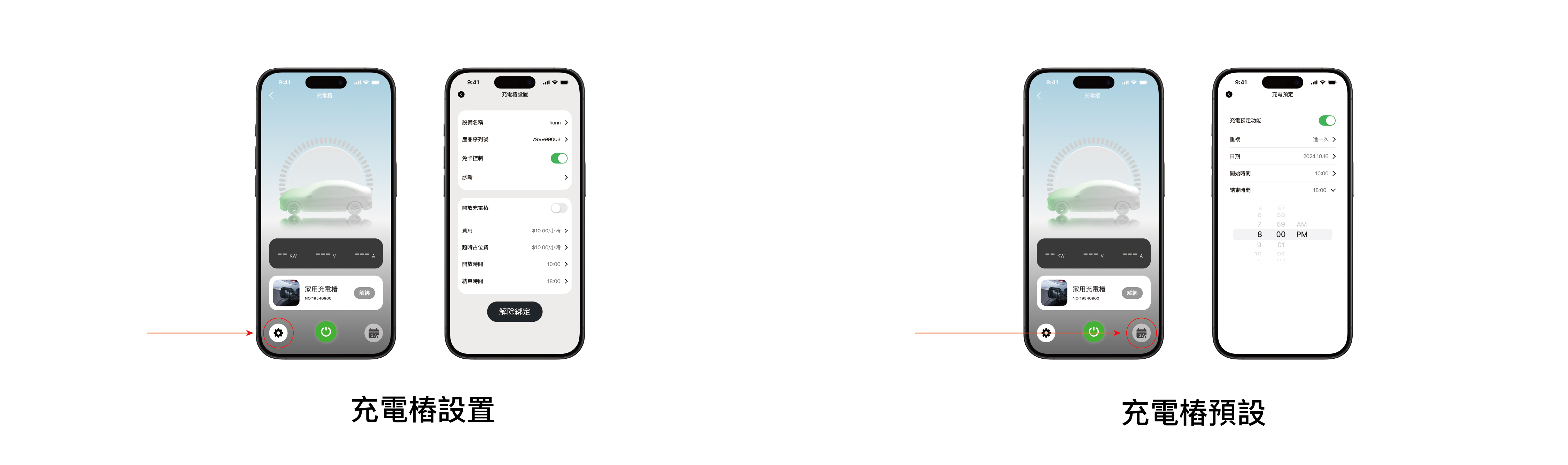

Charging Pile Defaults & Settings (APP)
Click the setting icon on the left side to access the charging pile settings page. Click the calendar icon on the right side to enter the charging pile presets page.
05.Restore Factory Settings
In standby status, press the emergency stop button, then turn off and turn on the power again. At this time, the charging pile will emit an alarm sound until the alarm stops, then press the emergency stop button to complete the restoration of factory settings.
06.Usage Precautions
1. This product must be installed by qualified personnel trained to operate electrical systems. The input air switch must be selected to be greater than 1.5 times the rated current of the device, and the power ground line must be reliably grounded.
2. During use, strictly follow the design parameters and usage conditions, do not exceed the thresholds in this user manual, otherwise, it may damage the device.
3. Please do not change the specifications of electrical components, do not modify internal circuits or connect other circuits.
4. After properly installing the charging pile, if the device does not start normally after being powered on, please check whether the power connection is correct.
5. The device has limited dust and waterproof capabilities, pay attention to anti-static, moisture-proof, and waterproof during use. If the device has been soaked, immediately cut off the power and stop using it.
6. Please do not plug and unplug the charging gun during the charging process to avoid irreversible damage to the charging pile and vehicle.
07.warranty regulations
1. This product provides a one-year free warranty service from the date of purchase. (Except for damage caused by human factors)
2. Please read the product manual carefully before use to avoid improper operation.
3. Damage due to improper use, product beyond warranty period, human and natural wear, etc., is not covered by the free warranty scope. The company will charge repair fees at its discretion for such repairs.
4. Contact method: support@honnmono.com.hk
