Magcar3 Manual

5/26/25

Car charging dock, power bank
Car charging dock, power bank
Car charging dock, power bank
01. Product Introduction

The product supports magsafe. To provide you with a more efficient charging experience, please choose data cables and car chargers that support the PD protocol.

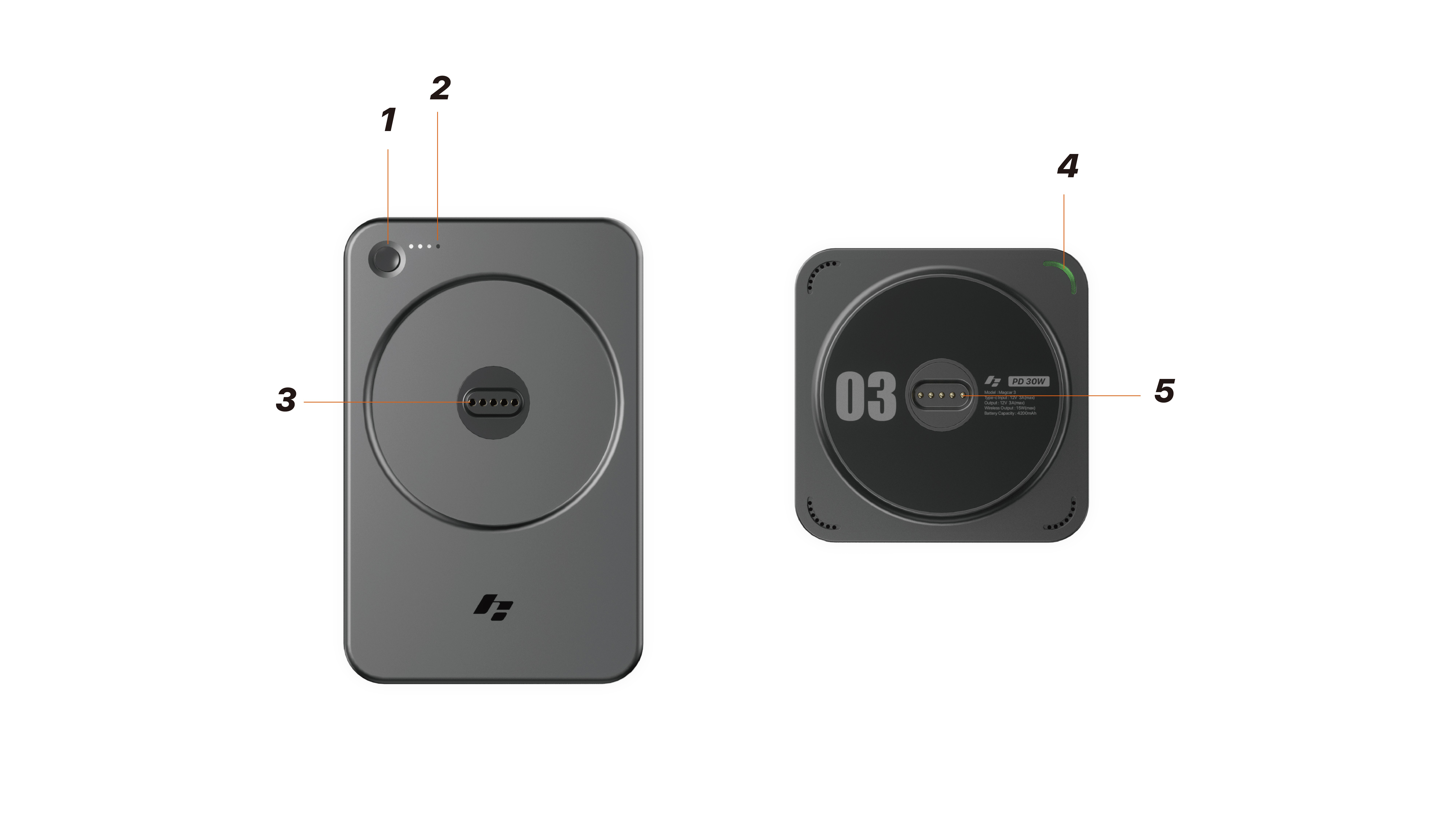

  1. Power Button of the Power Bank

  2. Power Indicator Light (Power Bank)

  3. Metal Copper Contacts (Power Bank)

  4. Car Charger Status Indicator Light

  5. Car Charger Metal Copper Contacts



02. Product Specifications


magcar3

Input (Type-C)

12V=2.5A

Output (Type-C)

30W

Output (Wireless Charging)

15W max

Battery Capacity

4200mAh 7.7V

Rated Energy

32Wh

Certification

CE, FCC, C-tick

Dimensions

Power Bank (114.5*73.5*15.5mm)

Car Charger Base (72.5*72.5*34mm)
Packaging Box (250*112*72mm)

Weight

Net Weight: 0.3kg


Accessory Cigarette Lighter Parameters

Input: DC

12V/24V

Output (Type-C1)

5V=3A; 9V=3A; 12V=3A; 15V=2.4A; 20V=1.8A

Output (Type-C2)

5V=3A; 9V=3A; 12V=3A; 15V=2.4A; 20V=1.8A

Type-C1 + Type-C2 Total Out

72W(max)= 36W(max)+36W(max)

Certification

CE, FCC, ROHS

Dimensions

∅28.5mm*68.3mm



03. Product Features


  1. Magnetic Design: N52 magnet with strong magnetic attraction, auto-alignment, more stable.

  2. PD30W: Higher output power compared to the previous generation.

  3. 3-in-1 Charging: Supports wired and wireless charging to meet various charging needs.



04. User Guide

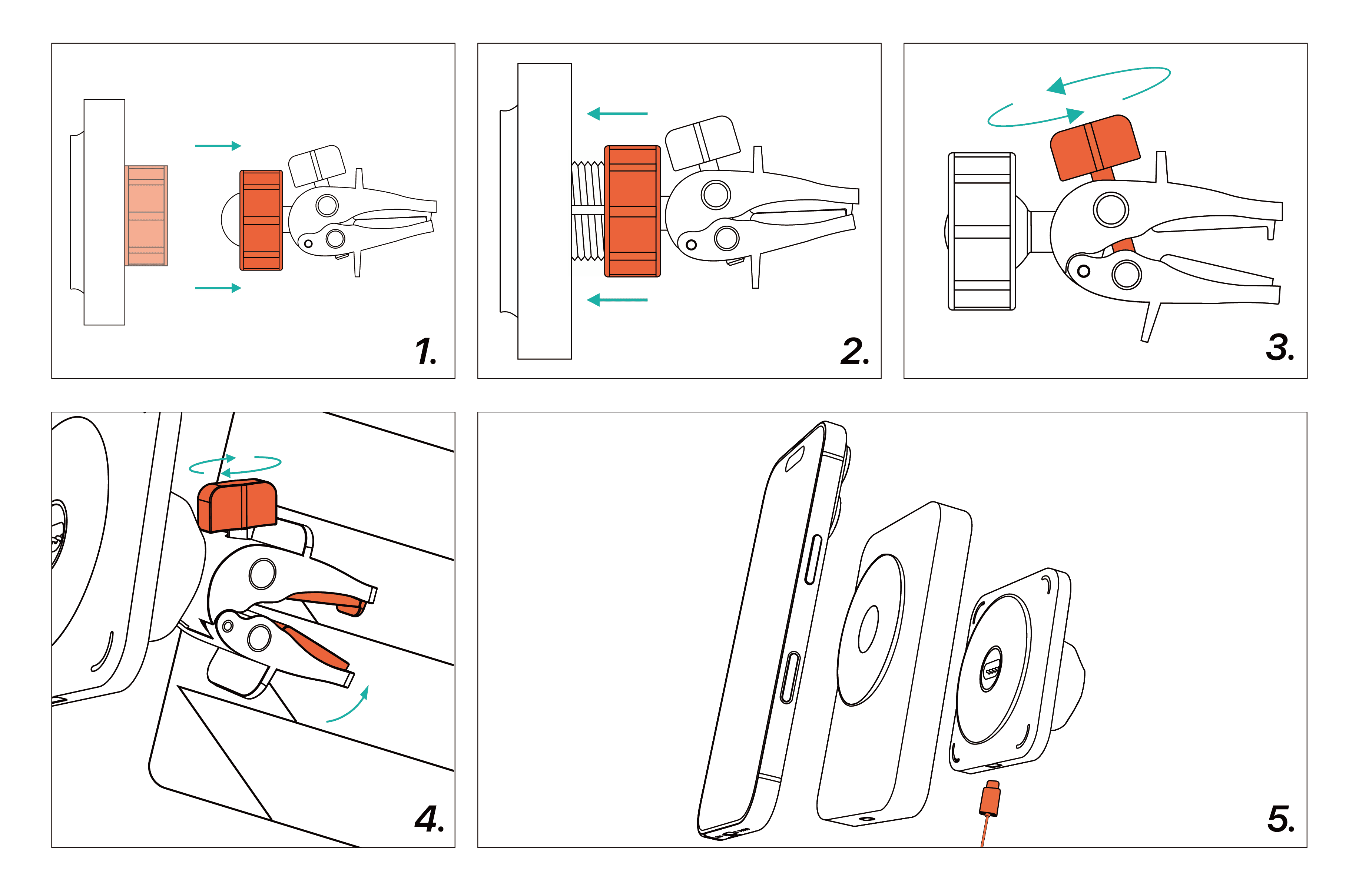

安裝流程


  1. Install Stand: Remove the base bolt and fit it onto the holder ball joint.

  2. Install Stand: Push the holder ball joint into the corresponding slot on the base and tighten the bolt.

  3. Secure Stand: Rotate the knob on the universal stand to ensure the two opening parts of the stand are wide enough to fit into the air vent.

  4. Secure Stand: Insert the universal stand into the blades of the air vent, rotating the knob to ensure the stand's opening tightly grips the air vent blades.

  5. Connect Power: Insert the power cable (Type-C) into the interface of the car charger base.

Note: Use the Type-C port on the cigarette lighter to power the car charger base, it is not recommended to use the USB-A port to power the base.

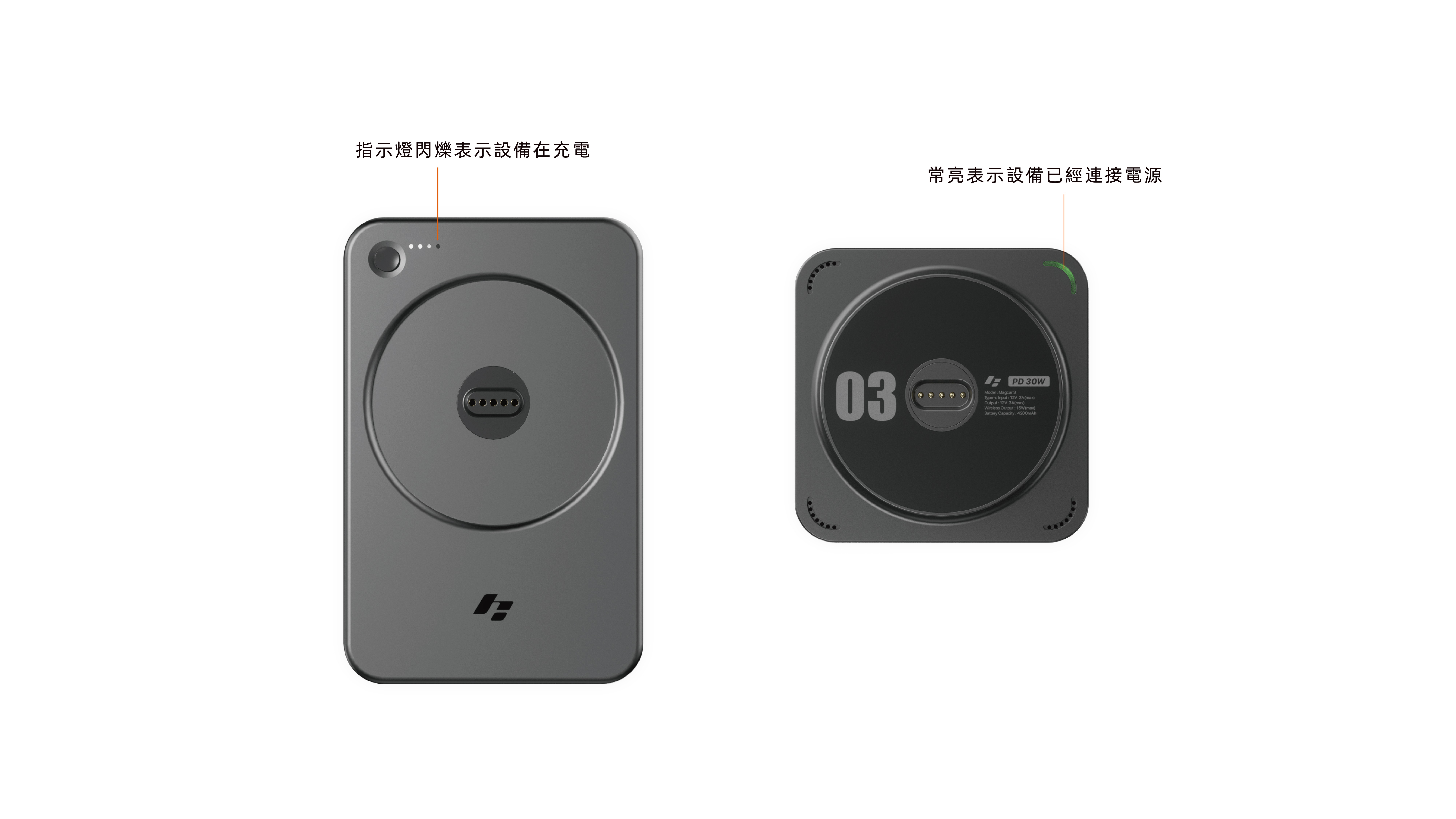

Status Indication


magcar3 功能




05. Warning


  1. Do not dismantle or modify this product to avoid secondary failures; products that have been dismantled are not covered by warranty.

  2. Store this product in a cool, dry environment.

  3. Please check the product for completeness before use; if any damage is found, stop using the product immediately.

  4. Do not throw this product into fire or water to avoid short circuit, leakage, or damage to the product.

  5. If the battery swells, stop charging or using this product.

  6. It is normal for the product to heat up during charging, and it should not affect the normal usage of the product.

  7. When parked, please disconnect the vehicle's power to the Magcar3 to avoid charging when the interior temperature is too high.



06. Package Contents



  • magcar3*1

  • Cigarette Lighter*1

  • Universal Stand*1



07. Product Certification


產品證書
