V2L Manual
5/27/25
01. Product Introduction

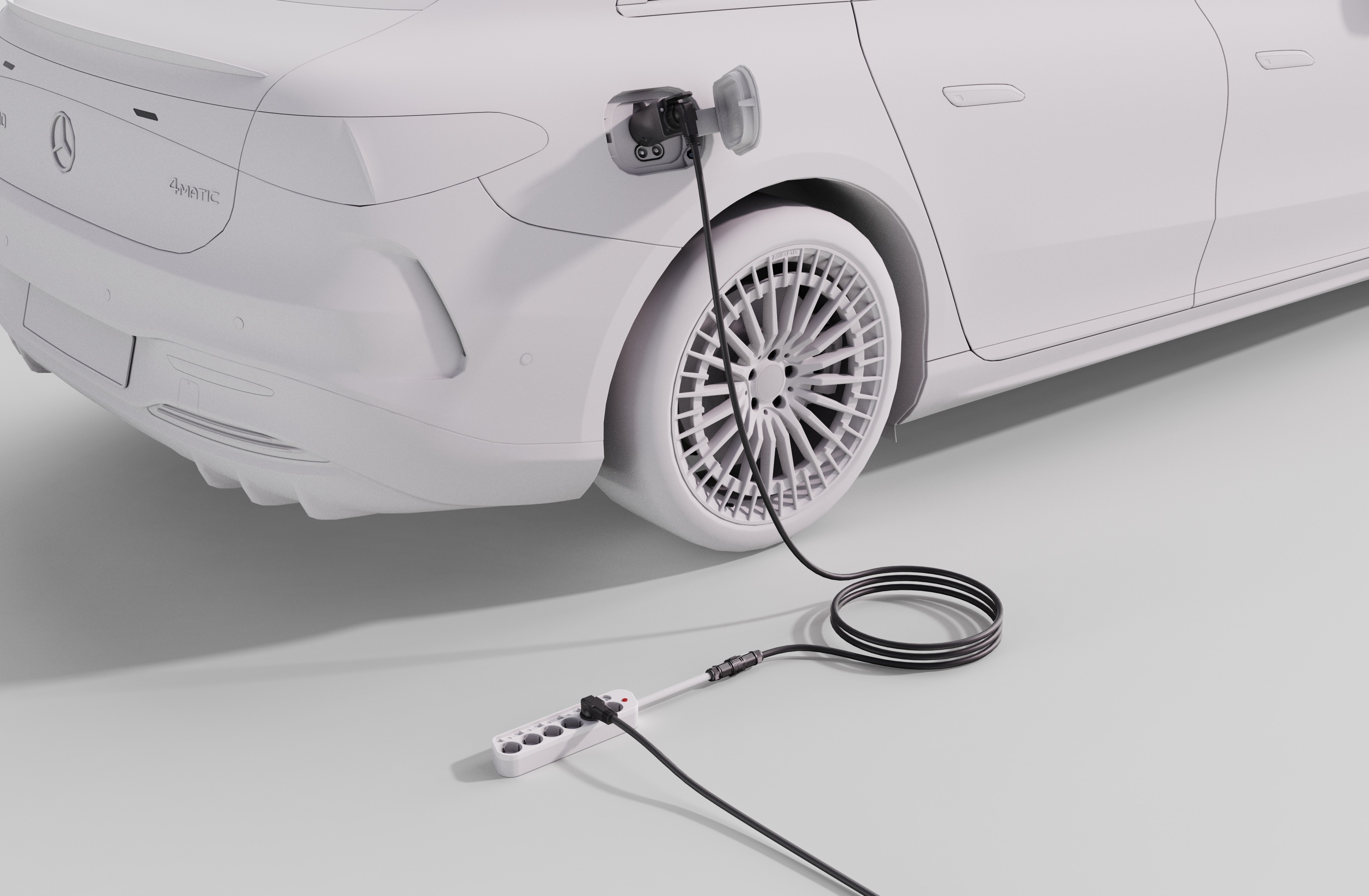

The V2L (Vehicle-to-Load) inverter allows vehicles to convert the electrical energy stored in their batteries into usable power for external devices and appliances.
The V2L plug can provide power to various household appliances, chargers, or devices up to 16A. Whether you are on a road trip, camping, or enjoying the fresh air, the V2L inverter can meet the power needs of small ovens, kettles, coffee machines, laptops, lighting, speakers, and more. Additionally, you can even use this inverter to charge another vehicle, simply by using a Type 2 portable charger.
Product Specifications | |
|---|---|
Power | Up to 3.84Kw |
Rated Voltage | 110V-240V (Compatible with US and European specifications) |
Current | 16A |
Conductor Material | Titanium Copper Alloy |
Housing Material | Polyoxymethylene (insulation material's combustion performance is UL94 VO) |
Operating Temperature | -20°C~55°C |
Storage Temperature | -30°C~85°C |
Resistance | Chip Resistance |
Seal Gasket | Silicone Rubber |
Safety | Acts as a disconnect switch when the locking release button is pressed |
Certification | CE, TUV, RoHS, ETL |
Protection Level | IP55 |
02. Instructions
Ensure your vehicle has the V2L option enabled.
Set the minimum percentage that can be extracted from your vehicle’s battery.
Plug your appliance, device, or charger into the V2L to begin using it.
To stop the charging process, simply unplug your appliance, device, or charger from the V2L, then unplug the V2L inverter.
03. FAQs
Q: Charging suddenly stops (Our inverter is equipped with temperature control safety features)
Solution: Please unplug the inverter immediately. Allow the inverter to cool down for 5 to 15 minutes, then resume charging.
Please also ensure that it is not an issue with the device itself; try switching attachments or devices.
Q: I accidentally submerged the inverter in water.
It is safe to use even in this situation, but we recommend thoroughly drying the inverter before using it again.
If you have concerns about safety during use, feel free to contact us, and we will be glad to assist you with any issues.
Q: I accidentally dropped the inverter on the ground.
Our inverter can withstand certain impacts, but each situation is different.
If it feels loose while shaken, please ensure that no parts are rattling or making abnormal sounds from the inverter.
If you feel unsafe using it, please feel free to contact us, and we will gladly assist you with any concerns.
04. Warranty
1. This product includes a one-year warranty.
2. Warranty will be void if the product is damaged due to misuse, abuse, negligence, vehicle accidents, or modifications. Our warranty only covers manufacturing defects.
